It is intended for production of commercial eggs for individual producers. KBJ is also used as a supplement on the farms whose objects are characterized by non-standard dimensions. It consists of 15 components, each of them accomodating 4 layers. Each of the components is an independent unit and is assembled without using any kind of tools. Several cage batteries can be connected in a line which, if desired, can be prolonged by adding components, each of them 0.4 m long.

Technical characteristics:
Capacity: One segment is for 4 commercial layers, whole cage battery is for 60 commercial layers
Drinking system: Automatic, by drinkers with central distribution from metal drinking trough
Feeding system: Manual, by pouring in the feed into feeding trough
Cleaning: Manual, by removing trays placed under each segment
Protection: Galvanized coating made by electrolysis

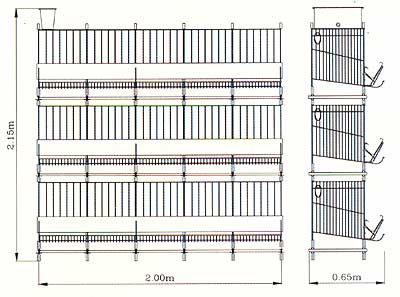

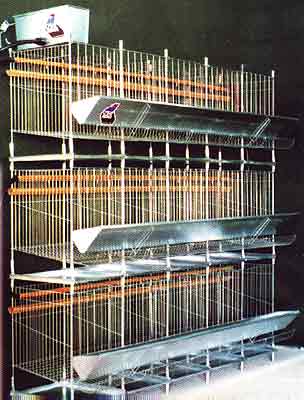

The look of cage battery for 60 commercial layers

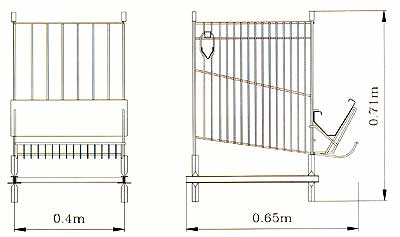

Basic segment for 4 commercial layers
